Unique Tips About Where Are Junction Boxes Allowed

Understanding Junction Boxes

1. What Exactly Is a Junction Box?

Okay, let's break it down. Imagine a party for electrical wires. A junction box is basically the venue for that party. It's an enclosure designed to protect electrical connections, keeping them safe from accidental damage and preventing potential fire hazards. Think of it as a tiny fortress for your wires, ensuring everything runs smoothly and safely within your electrical system. It's not just some random box; it's a code-required safety device.

These boxes aren't just for show, though. They serve a crucial purpose in allowing you to safely split or extend electrical circuits. Need to add an outlet? Junction box. Adding a light fixture? Junction box. They're like the unsung heroes of home electrical projects, quietly ensuring everything is connected correctly and securely. Ignoring them is like inviting trouble to your electrical system's doorstep.

Now, the materials used for these boxes can vary. You'll typically find them made of metal (steel or aluminum) or non-metallic materials like plastic. The choice depends on the application and local electrical codes. Metal boxes offer better protection against physical damage, while plastic boxes are corrosion-resistant. Selecting the right one is like choosing the right tool for the job — it makes all the difference.

And remember, junction boxes aren't just for DIY projects; they're an integral part of any professionally installed electrical system. So, whether you're a seasoned electrician or a weekend warrior, understanding junction boxes is essential for safe and compliant electrical work. They really are the cornerstones of safe wiring. Forget them at your own peril!

Where Can Junction Boxes Be Placed? The Basics

2. General Rules of the Road (or the Wall!)

Alright, so you know what a junction box is. Now, where can you actually put one? This is where things get interesting, and where knowing your electrical code is super important (or, you know, hiring someone who does!). The general rule is this: junction boxes must be accessible. That doesn't mean you need to be able to reach out and touch them whenever you want, but it does mean you can't bury them behind drywall without a cover plate. Imagine needing to troubleshoot a wiring issue only to discover the junction box is entombed! Talk about a headache.

Think about it logically. If a connection fails, you need to be able to get to it without demolishing half your house. Accessibility is paramount for inspections, repairs, and future modifications to your electrical system. So, before you even think about nailing up that drywall, make absolutely sure your junction boxes are accessible. It's a recipe for disaster otherwise.

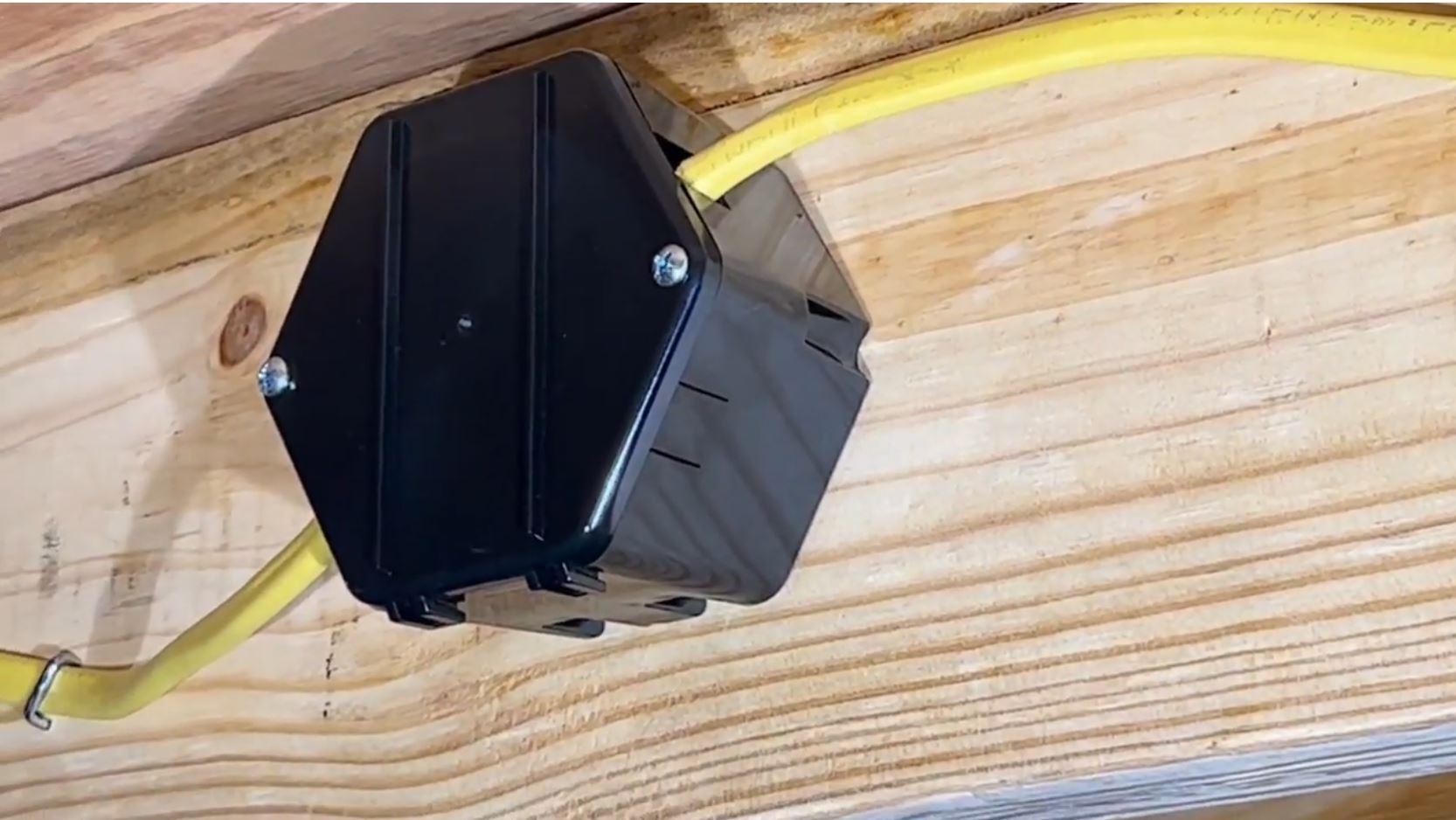

This accessibility requirement often translates to placing junction boxes in attics, basements, crawl spaces, or inside accessible walls with a removable cover plate. These locations provide relatively easy access for electricians or homeowners who need to inspect or work on the wiring. It's all about planning ahead and thinking about the long-term maintainability of your electrical system. Nobody wants a hidden electrical surprise!

Consider using junction box extension rings if the existing box is recessed too deeply within the wall. These rings bring the box opening flush with the wall surface, making it easier to attach a cover plate. It's a simple solution that can save you a lot of hassle down the road. It's the little things, right?

Specific Location Considerations

3. Attics, Basements, and Beyond!

Let's zoom in on some specific locations. Attics and basements are common spots for junction boxes, primarily because they offer relatively easy access. However, even in these seemingly simple environments, there are rules to follow. For instance, junction boxes in damp or wet locations (like some basements) need to be rated for those conditions — think "weatherproof" or "raintight." You wouldn't want your electrical connections getting soggy, would you?

In finished walls, junction boxes need to be accessible via a cover plate. This plate should be securely fastened and readily removable. And, of course, it needs to be visible. No hiding it behind wallpaper or artwork! The whole point is easy access. Think of the cover plate as a little window into your electrical system. You want it to be easily found, not a hidden treasure.

What about outdoor locations? Absolutely, junction boxes can be used outdoors, but they must be weatherproof. These boxes are designed to withstand rain, snow, and other environmental elements. They often have gaskets and other features to prevent water from entering and causing corrosion or short circuits. Using the wrong type of box outdoors is like leaving your electronic devices out in a thunderstorm. Not a good idea!

Also, make sure any junction boxes near sources of heat, such as recessed lighting fixtures, are rated for the appropriate temperature. Heat can degrade wiring insulation over time, so it's important to use materials that can withstand the heat. Again, it's all about planning and using the right equipment for the job. Electrical safety is no laughing matter, so taking the extra time to ensure proper installation can prevent serious problems.

Junction Boxes

4. When to Say "No" to a Junction Box

Okay, so you know where you can put a junction box. Now, let's talk about where you can't. The biggest no-no is burying a junction box behind drywall or any other permanent surface without access. As we've hammered home, accessibility is key. Hiding a junction box is a code violation and a serious safety hazard.

Another situation where you shouldn't use a junction box is when it would overload the box with too many wires. Each junction box has a specific fill capacity, which is determined by its size and the size of the wires. Overfilling a junction box can lead to overheating and potentially a fire. It's like trying to cram too many people into a small room — it just doesn't work!

Furthermore, avoid using junction boxes in hazardous locations where flammable materials are present, unless they are specifically designed and rated for those environments. Explosions and electrical sparks don't mix well, so you need to use explosion-proof boxes in those situations. This is typically applicable in industrial settings rather than residential ones, but it's still important to know.

Finally, don't use a junction box to make connections that are specifically prohibited by the electrical code. This can include using the wrong type of connectors or making connections that are not secure. Always follow the code and use approved methods for making electrical connections. Short cuts can lead to problems. When in doubt, consult a qualified electrician.

Ensuring Proper Installation

5. Making Sure You're Doing It Right

Alright, time for a quick checklist to make sure you're installing your junction boxes correctly. First, always turn off the power to the circuit before working on any electrical wiring. This might seem obvious, but it's the most important safety precaution. Pretend the breaker box is a time machine, and going back in time to undo an electric shock isn't an option. Stay safe!

Second, use the correct size and type of junction box for the application. Consider the number of wires you need to connect and the environmental conditions. Using the correct box is like wearing the right shoes for a hike — it makes the whole experience a lot smoother and more comfortable.

Third, make sure all connections inside the junction box are secure and properly insulated. Use wire connectors (wire nuts) to join the wires together, and ensure that the connectors are tightly twisted. Loose connections can cause arcing and overheating. Tighten those connections like you're trying to win a weightlifting competition!

Fourth, properly ground the junction box and any associated metal components. Grounding provides a path for electricity to flow safely to ground in the event of a fault. A properly grounded system can prevent electric shocks and equipment damage. Think of grounding as the superhero of your electrical system, always there to save the day.

Finally, after you've completed the wiring, carefully inspect the junction box and connections to make sure everything is secure and properly installed. Double-check your work before turning the power back on. It's like proofreading a document before submitting it — you want to catch any errors before they cause problems. And of course, consult a qualified electrician if you have any doubts or questions.

FAQ

6. Your Burning Questions Answered!

Still have some questions swirling around in your head? Let's tackle a few common queries about junction boxes.

Q: Can I paint a junction box?
A: Generally, yes, you can paint a junction box, but be careful not to cover any labels or markings that identify its rating or purpose. Also, make sure the paint is compatible with the material of the box (metal or plastic). The key is to not compromise functionality or safety.

Q: What happens if I find a buried junction box?
A: If you discover a buried junction box, you should immediately expose it and install a cover plate to make it accessible. This is a code violation and a safety hazard, so it's important to correct it as soon as possible. If you're not comfortable doing this yourself, call a qualified electrician.

Q: Can I use a junction box to extend a circuit across different rooms?
A: Yes, you can use a junction box to extend a circuit across different rooms, as long as the box is accessible and properly installed. Make sure the circuit is not overloaded and that the wiring is suitable for the intended use. It's a common practice, just make sure you're doing it safely and according to code!
