Unlocking the Secrets of Your Arduino

1. The Tiny Program That Starts It All

Ever wondered how your Arduino magically comes to life when you plug it in? It's not pixie dust (though, that would be cool). It's all thanks to a little piece of software called a bootloader. Think of it as the tiny program that knows how to get the real program (your sketch) running. The bootloader, technically a noun in this context, is the crucial first piece of software the microcontroller executes when powered on. It's responsible for setting everything up so that your code can do its thing.

Without a bootloader, your Arduino would be like a car without an ignition. You might have a shiny engine (the microcontroller), but you wouldn't be able to start it up and make it run. The bootloader acts as the ignition system, preparing the hardware and then loading your program into memory.

This small program resides in a specific section of the microcontroller's memory, reserved just for it. It's typically installed at the factory, but you can replace it if you need to. We'll get to that later, but for now, just appreciate the bootloader for the unsung hero it is.

So next time you upload a sketch, remember that tiny bootloader doing its job behind the scenes, making the whole process seamless. It's the reason you can upload new code over and over again without needing special hardware programmers every single time. Isn't technology amazing?

How the Bootloader Works

2. The Secret Handshake Between Your Computer and Your Arduino

Okay, let's break down the bootloader's role in the upload process. Imagine your computer wants to tell your Arduino what to do (upload a new sketch). The bootloader is the translator. It listens for instructions from your computer via the USB connection. It's constantly checking to see if there's new code waiting to be loaded.

When your computer initiates an upload, the bootloader receives the data (your compiled sketch). It then carefully writes this data to the Arduino's flash memory, which is where programs are stored. This is done in a specific format that the microcontroller understands.

After the upload is complete, the bootloader usually verifies that the data was written correctly. This is a crucial step to ensure that your program will run without errors. If everything checks out, the bootloader jumps to the beginning of your sketch, effectively handing over control to your code. And that's when your Arduino starts doing what you programmed it to do!

Its a pretty efficient system, all things considered. And the best part is, you don't usually have to think about it. It just works! But understanding the process gives you a deeper appreciation for the technology and helps you troubleshoot if things go wrong (which, lets be honest, they sometimes do!).

Why Would You Ever Need to Mess With the Bootloader? (And When You Shouldn't)

3. Proceed With Caution

Under normal circumstances, you should never need to touch the bootloader. It comes pre-installed and does its job perfectly well. However, there are a few niche situations where you might consider replacing it. For example, you might want to use a different bootloader to optimize for faster upload speeds, reduce memory footprint, or add new features. You could modify the bootloader to implement custom security features, such as requiring a password to upload new code.

Another reason to replace the bootloader is if it becomes corrupted. This can happen due to power surges, programming errors, or even cosmic rays (seriously!). A corrupted bootloader will prevent you from uploading new code, effectively bricking your Arduino. In this case, you'll need to re-flash the bootloader using a special hardware programmer.

It's important to emphasize that messing with the bootloader is an advanced topic and should only be attempted if you know what you're doing. Incorrectly flashing a new bootloader can permanently damage your Arduino. Think of it like open-heart surgery for your microcontroller. You wouldn't attempt that without years of medical training, right?

So, unless you have a compelling reason to replace the bootloader and you're comfortable with the risks involved, it's best to leave it alone. There's a saying: "If it ain't broke, don't fix it." That applies perfectly here. Focus on writing awesome Arduino sketches and let the bootloader do its thing in the background. It's much happier that way.

How to Re-flash a Bootloader (If You Absolutely Must)

4. The Risky Business of Bootloader Replacement

Okay, so you've decided you absolutely must re-flash your bootloader. Maybe it's corrupted, or maybe you're just feeling adventurous. Whatever your reason, proceed with caution! This is a delicate operation.

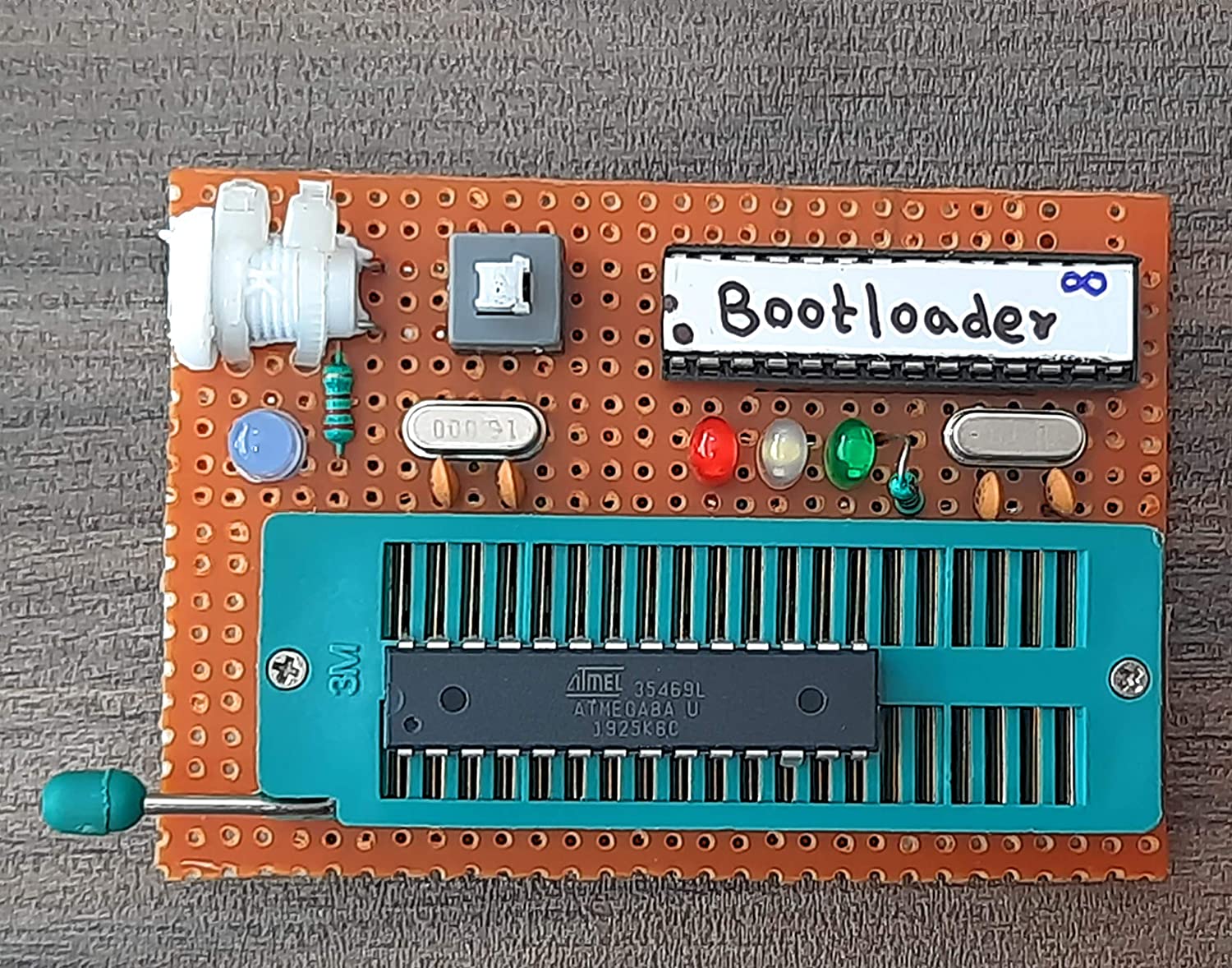

First, you'll need a few things: an Arduino programmer (like an AVR programmer or another Arduino acting as an ISP — In-System Programmer), the correct bootloader file for your Arduino board (usually in .hex format), and the Arduino IDE (or another programming environment that supports flashing bootloaders).

The process generally involves connecting the programmer to your Arduino using specific pins (usually the ICSP header). Then, using the Arduino IDE or a dedicated programming tool, you'll select the correct programmer, board type, and bootloader file. Finally, you'll initiate the flashing process. This will erase the existing bootloader and write the new one to the microcontroller's memory. It's nail-biting stuff, especially the first time!

After flashing the new bootloader, it's a good idea to verify that it's working correctly. Try uploading a simple sketch to your Arduino. If the upload is successful, congratulations! You've successfully re-flashed your bootloader. If not, well, you might need to troubleshoot your connections, settings, or bootloader file. Remember to double check that you have selected the right board in the IDE!

Beyond the Basics

5. Stepping into the World of Bootloader Wizardry

For those who are truly adventurous, the world of custom bootloaders awaits. You can write your own bootloader from scratch, tailoring it to your specific needs. This is a complex undertaking, requiring a deep understanding of microcontrollers, memory management, and programming. But the rewards can be significant.

With a custom bootloader, you can implement advanced features like over-the-air (OTA) updates, allowing you to update your Arduino's firmware wirelessly. This is particularly useful for projects that are deployed in remote locations or that are difficult to access physically. Other advanced features may include the ability to automatically switch between multiple firmware versions based on specific conditions, enhancing device reliability and adaptability.

However, creating a custom bootloader is not for the faint of heart. It requires a significant investment of time and effort, and it's easy to make mistakes that can brick your Arduino. But if you're up for the challenge, it can be a rewarding experience that unlocks the full potential of your microcontroller.

So, while the default bootloader is perfectly adequate for most users, knowing that you can customize it opens up exciting possibilities for advanced projects. Just remember to proceed with caution, and always back up your existing bootloader before making any changes. Now, go forth and experiment! But maybe start with a simple blink sketch first, just to be safe.

FAQ About Arduino Bootloaders

6. Your Burning Questions Answered (Hopefully)

Let's tackle some common questions about Arduino bootloaders.

Q: What happens if my bootloader gets corrupted?
A: If your bootloader is corrupted, you won't be able to upload new sketches to your Arduino. It's like the Arduino has lost its ability to communicate with your computer. You'll likely need to re-flash the bootloader using a hardware programmer.

Q: Can I use any bootloader with any Arduino board?
A: No! The bootloader is specific to the microcontroller and the board design. Using the wrong bootloader can brick your Arduino. Make sure you select the correct bootloader file for your board.

Q: Is it possible to password protect the bootloader to prevent unauthorized firmware updates?
A: Yes, this is possible by customizing the bootloader. You would need to modify the bootloader code to require a password or other authentication mechanism before allowing new firmware to be uploaded. This requires advanced programming skills and an understanding of microcontroller security principles.

Q: Where can I find the correct bootloader file for my Arduino board?
A: The bootloader files are typically included with the Arduino IDE. You can find them in the hardware/arduino/avr/bootloaders directory (or similar, depending on your Arduino IDE version and board). Alternatively, you can download them from the Arduino website or from the board manufacturer's website.
